1,699.00€ *
Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays (**)
Save your email address and stay informed about this article.
as soon as the item is back in stock
as soon as the price goes down
as soon as the article is available as a special offer
- Order number: ST-51786850
- EAN 4026397701142
- Shippingclass: Standard
Beam/spot/wash moving-head with 371W discharge lamp, color wheel, gobo wheels, prisms, frost,... more

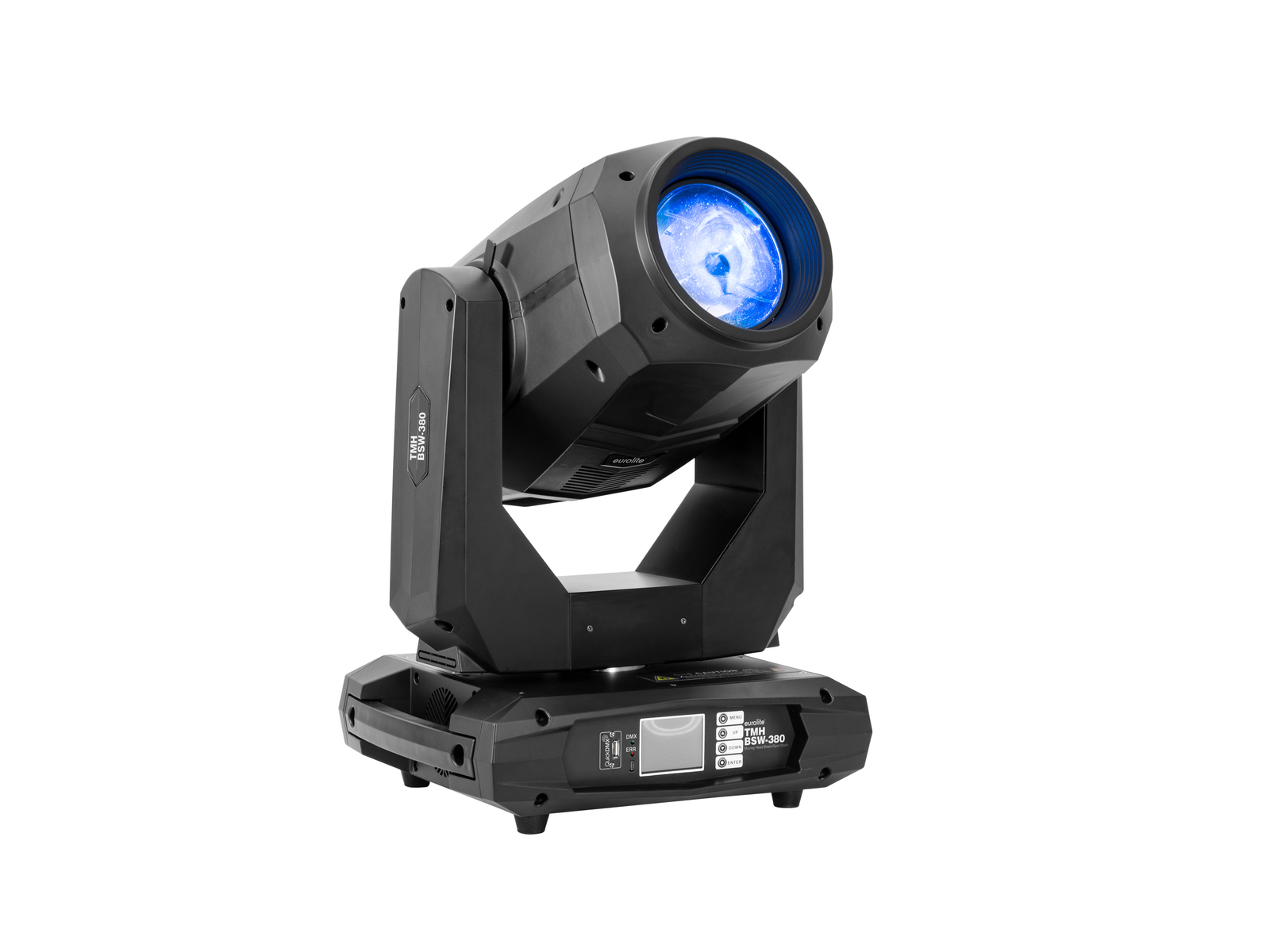

Product information "EUROLITE TMH BSW-380 Moving-Head Beam/Spot/Wash"
Beam/spot/wash moving-head with 371W discharge lamp, color wheel, gobo wheels, prisms, frost, focus and zoom
- Beam, spot and wash light in one device
- Light source: Osram Sirius HRI 371W discharge lamp
- Lamp already installed and adjusted from factory
- Bidirectional rotating 8- and 16-facet prism with variable speed
- Frost filter for softer beam
- Integrated color and gobo macros
- Strobe effect 1-18 Hz
- Internal programs
- Motorized focus
- Motorized zoom with 4-35° beam angle
- Dimmer (0-100%)
- Positioning within 540° PAN and 230° TILT
- Exact positioning via 16 bit PAN/TILT movement resolution
- Exact zoom and focus setting using fine channels via DMX
- Automatic position correction
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Battery-powered touchscreen display for mains-independent configuration
- Mains input and output for power linking up to 4 units
- Color wheel 13 dichroitic colors and open
Rainbow effect with adjustable speed in both directions - Switchable color change (mode 1: only full colors, mode 2: color-change at every position)
- Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Slot-in gobo system for exchanging gobos without tools
- Gobos changeable
- Gobo wheel with static gobos, 11 gobos and open
shake effect - Gobo wheel with static gobos, 5 gobos and open
shake effect - Can be operated in 22, 26 CH mode
- The device is cooled by cooling fan
- Controlling by stand-alone, DMX, Sound to light via Microphone, Master/slave function, QuickDMX via USB (optional), W-DMX by wireless solution via USB (optional), CRMX by LumenRadio via USB (optional)
- OSRAM bulb included
Related links to "EUROLITE TMH BSW-380 Moving-Head Beam/Spot/Wash"
Specifications "EUROLITE TMH BSW-380 Moving-Head Beam/Spot/Wash"
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 490 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, T 8 A |
| Lamp type: | Discharge lamp |
| Max. TILT movement: | 230° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Max. PAN movement: | 540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Flash rate: | 1 - 18 Hz |
| Equipment: | Prism 16-fold; Prism 8-fold rotating; Prism 16-fold rotating; gobo wheel with static gobos; gobo wheel with rotating gobos; Focus motor-driven; Zoom motor-driven; frost filter; Dimmer |
| Color generation: | Color wheel with 13 dichroic filters plus open Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Shake effect Outside diameter 22,5mm Image diameter 12mm Slot-in gobo system for easy gobo replacement Gobos changeable Gobo wheel with static gobos, 11 gobos and open Shake effect Gobo wheel with static gobos, 5 gobos and open Shake effect |
| DMX channels: | 22; 26 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain |
| Beam angle: | 4° - 35° |
| Beam angle (1/2 peak): | Spot 4 - 35° |
| Beam angle (1/10 peak): | Spot 4 - 35° |
| Housing color: | Black |
| Display type: | Multicolor LCD display battery buffering |
| Use of brands: | OSRAM bulb included |
| Dimensions: | Width: 39,5 cm Depth: 30,5 cm Height: 63,0 cm |
| Weight: | 22,70 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
Details on product safety "EUROLITE TMH BSW-380 Moving-Head Beam/Spot/Wash"
Information Required by the General Product Safety Regulation (GPSR)
Manufacturer:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
Waldbüttelbrunn, 97297
Germany
Phone: +49 931 4061 600
Email: info@steinigke.de
Responsible Entity in the EU:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
Waldbüttelbrunn, 97297
Germany
Phone: +49 931 4061 600
Email: info@steinigke.de
