165.00€ *
Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays (**)
Save your email address and stay informed about this article.
as soon as the item is back in stock
as soon as the price goes down
as soon as the article is available as a special offer
- Order number: ST-70064866
- EAN 4026397572452
- Shippingclass: Standard
RDM-capable DMX splitter, 1in/2out with signal boost DMX splitter for splitting one DMX... more

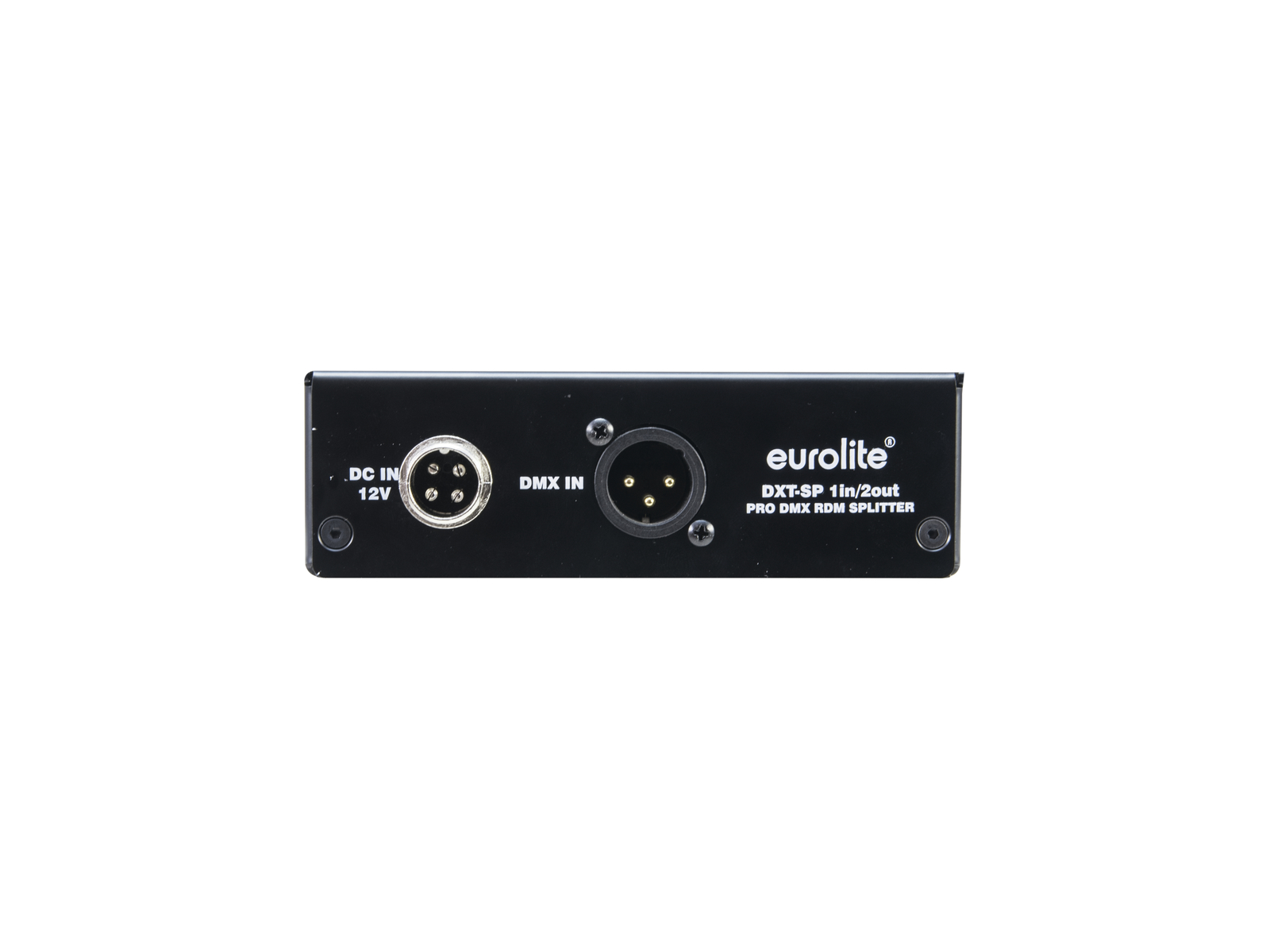

Product information "EUROLITE DXT-SP 1in/2out PRO DMX RDM Splitter"
RDM-capable DMX splitter, 1in/2out with signal boost
- DMX splitter for splitting one DMX input signal to 2 DMX outputs
- Connections: 1 x DMX input, 2 x DMX output
- Supports RDM for bidirectional communication over the DMX line
- Switchable filter mode allows all RDM data to be filtered out in order to prevent problems when using fixtures intolerant of RDM
- Bypass function to process signals from older devices similar to DMX signals
- Output frequency adjustable: 22/44 Hz
- DMX fail mode selectable: hold, blackout, null
- Input and outputs XLR 3-pin (Neutrik)
- Outputs galvanically isolated
- Each DMX output with independent driver and status indicator
- Each DMX output can be connected to 32 DMX devices
- Powered via included PSU
- Rack installation via optional rack mounting kit (item 70064872)
- DMX fail mode (hold, blackout, null)
DMX feed-through for up to 32 further DMX devices
RDM For bidirectional communication over the DMX line
RDM switchable to prevent problems when using fixtures without RDM - Made in Germany
Related links to "EUROLITE DXT-SP 1in/2out PRO DMX RDM Splitter"
Specifications "EUROLITE DXT-SP 1in/2out PRO DMX RDM Splitter"
Power supply: | 100-240 V AC, 50/60 Hz 12 V DC 1 A |
Power consumption: | 1,8 W |
Power connection: | Fixed power supply cord with safety plug |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 2 x 3-pin XLR (F) mounting version Separate (galvanic) with active signal processing |
Control: | RDM |
DMX features: | DMX feed-through for up to 32 further DMX devices RDM For bidirectional communication over the DMX line RDM switchable to prevent problems when using fixtures without RDM |
DMX fail mode: | Hold; blackout; null |
Use of brands: | Built with NEUTRIK connector |
Dimensions: | Width: 13 cm Depth: 10 cm Height: 4,1 cm |
Weight: | 650 g |
Details on product safety "EUROLITE DXT-SP 1in/2out PRO DMX RDM Splitter"
Information Required by the General Product Safety Regulation (GPSR)
Manufacturer:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
Waldbüttelbrunn, 97297
Germany
Phone: +49 931 4061 600
Email: info@steinigke.de
Responsible Entity in the EU:
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
Waldbüttelbrunn, 97297
Germany
Phone: +49 931 4061 600
Email: info@steinigke.de
