EUROLITE DXT-ME PRO DMX merger

125.00€ *

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays (**)

Save your email address and stay informed about this article.

as soon as the item is back in stock
as soon as the price goes down
as soon as the article is available as a special offer
  • ST-70064868
  • 4026397572476
  • Standard
PRO DMX merger to combine 2 DMX signals into 1 Pro DMX merger with 2 DMX inputs and 1 DMX... more
Product information "EUROLITE DXT-ME PRO DMX merger"


PRO DMX merger to combine 2 DMX signals into 1

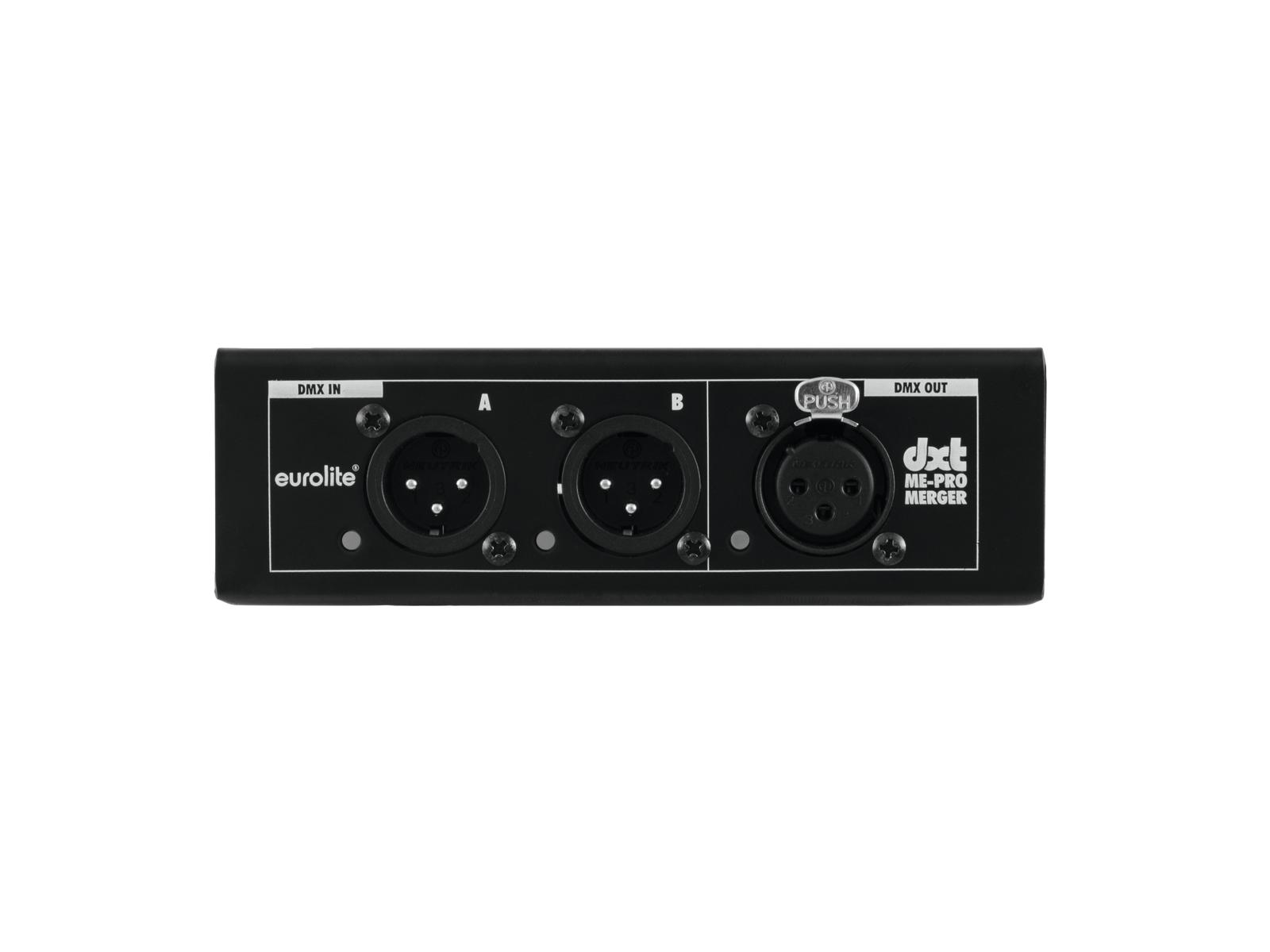

  • Pro DMX merger with 2 DMX inputs and 1 DMX output
  • Enables two separate consoles to control one DMX system
  • Compact version with rugged metal body for use on stage
  • DMX modes: LTP, HTP, merge or backup
  • Input B can be set to a start address (offset)
  • LED indicator for valid DMX signals
  • Selectable output frequency 22 Hz/44 Hz
  • Steady DMX output
  • 3-pin XLR connectors (Neutrik)
  • Powered via included PSU

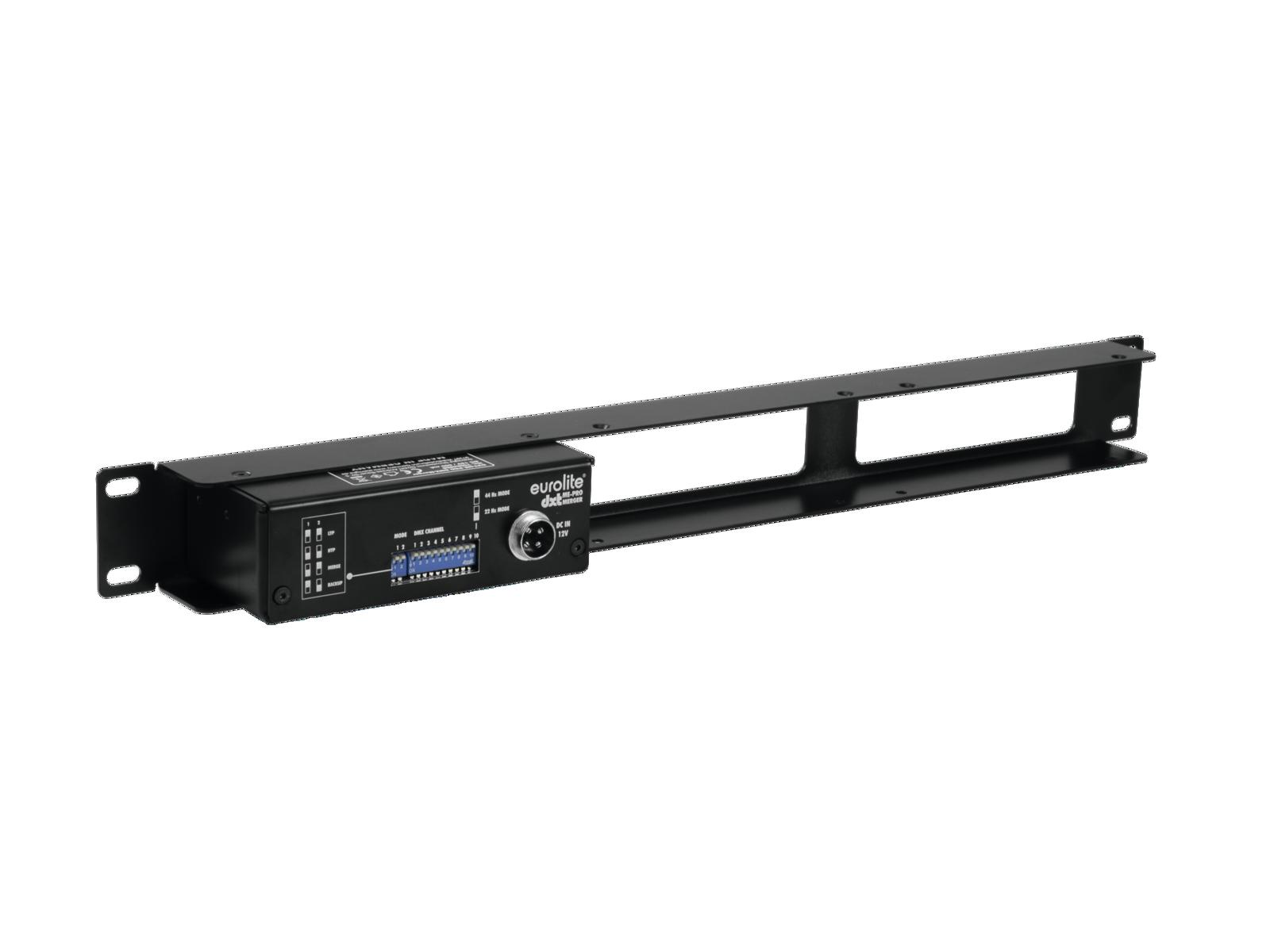

  • Rack installation via optional rack mounting kit (item 70064872)
  • Made in Germany


Related links to "EUROLITE DXT-ME PRO DMX merger"
Specifications "EUROLITE DXT-ME PRO DMX merger"
Power supply:100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption:1 W
Power connection:Mains input via 4-pin screw plug connector (M) mounting version power supply cord with AC adapter (provided)
DMX input:2 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Use of brands:Built with NEUTRIK connector
Dimensions:Width: 13 cm
Depth: 7 cm
Height: 4,1 cm
Weight:500 g
