DMX-controlled surface light with 2688 RGBALC LEDs and barn doors 2688 powerful LEDs... more

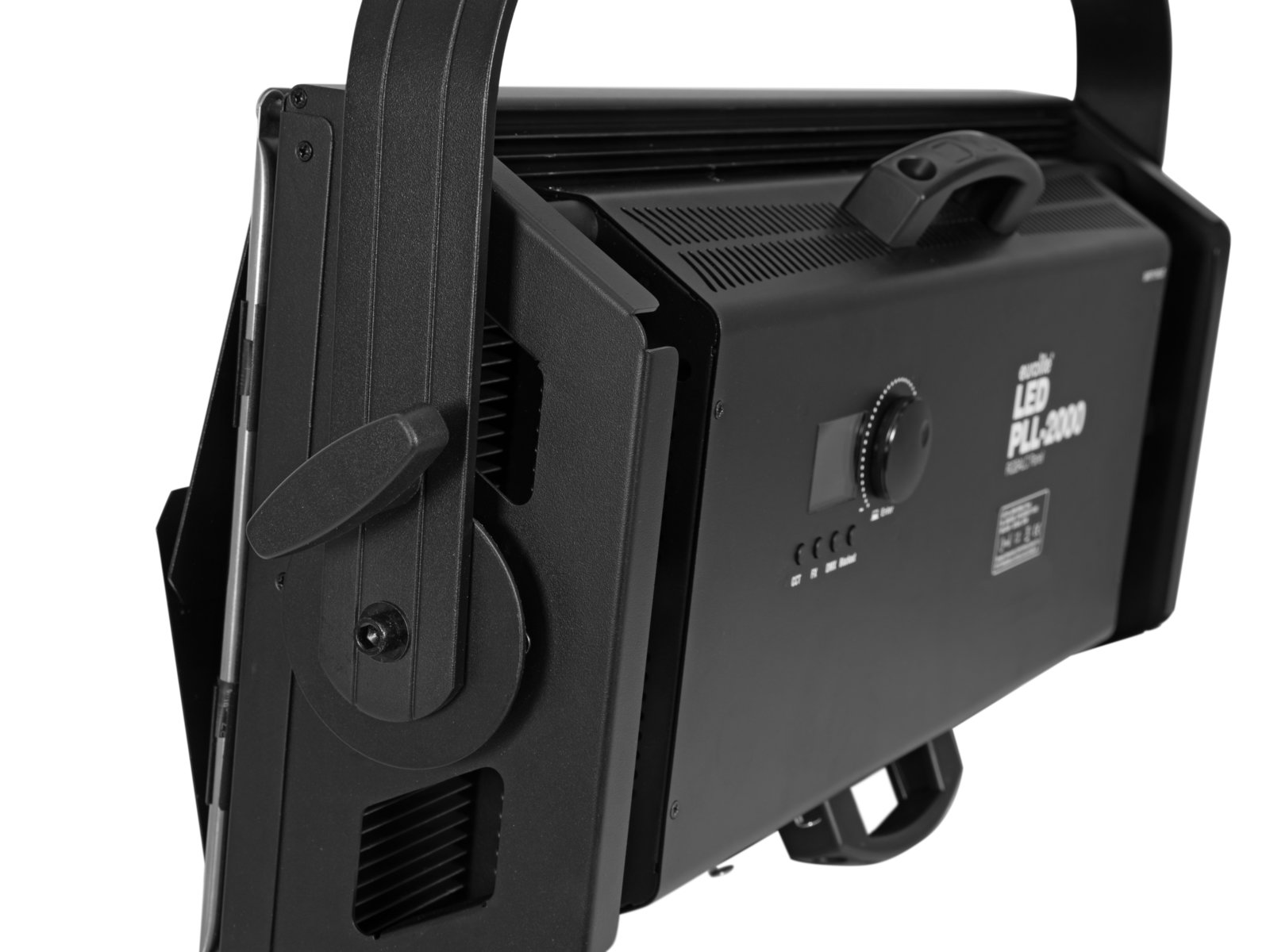

Product information "EUROLITE LED PLL-2000 RGBALC Panel"
DMX-controlled surface light with 2688 RGBALC LEDs and barn doors
- 2688 powerful LEDs R/G/B/A/L/C (homogenous color mix)
- Can be operated in 5 (HSI hue/saturation/intensity), 8, 9, 11 CH mode
- Controlling by stand-alone, DMX, Master/slave function
- With a beam angle of 120°
- 4 barn doors to avoid blinding the audience and for protection during transport
- Milky front screen provides a homogeneous and soft light
- Mains input and output for power linking up to 8 units
- The device is cooled by passive convection cooling
- Flicker-free
- With Mounting bracket
- Multicolor LCD display
- 2 Rugged carrying handles
- Color blend stepless, color change adjustable, color fade adjustable, Dimmer electronic, pulse-width modulation variable
- Strobe effect
- Very high color rendering index (CRI)
- Preprogrammed in Light Captain
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x plug (male)
Related links to "EUROLITE LED PLL-2000 RGBALC Panel"
Specifications "EUROLITE LED PLL-2000 RGBALC Panel"
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 200 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 2688 x R/G/B/A/L/C (homogenous color mix) |
| Flash rate: | 12 Hz |
| DMX channels: | 5 (HSI hue/saturation/intensity); 8; 9; 11 |
| DMX input: | 3-pin XLR (M) mounting version 5-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version 5-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; Master/slave function |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 120° |
| Beam angle (1/2 peak): | 120° |
| Color rendering index (CRI): | 96 Ra |
| Illuminance in Lux (lx): | Red (R) 1m: 185 lx, 3m: 6 lx, 6m: 0 lx Green (G) 1m: 913 lx, 3m: 123 lx, 6m: 32 lx Blue (B) 1m: 243 lx, 3m: 34 lx, 6m: 7 lx Amber (A) 1m: 1307 lx, 3m: 148 lx, 6m: 29 lx Lime 1m: 3712 lx, 3m: 519 lx, 6m: 127 lx Cyan 1m: 642 lx, 3m: 88 lx, 6m: 22 lx All 1m: 4587 lx, 3m: 643 lx, 6m: 155 lx |
| Lamp life: | 50000 h |
| Luminous flux: | 16000 lm |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | Multicolor LCD display |
| Carrying handle: | 2 pc/pcs |
| Dimensions: | Width: 64,5 cm Depth: 14,0 cm Height: 34,5 cm |
| Weight: | 10,20 kg |
| Noise classification: | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Energy efficiency class (A - G): | F |
