This product is currently not available.
94.90€ *
Prices incl. VAT plus shipping costs
Currently not available
Save your email address and stay informed about this article.
as soon as the item is back in stock
as soon as the price goes down
as soon as the article is available as a special offer
- Order number: ST-51930389
- EAN 4026397716160
- Shippingclass: Standard
LED light effect bar (60 cm) with RGB+WW color mixing 6 powerful LEDs 7 W high-power 4in1... more

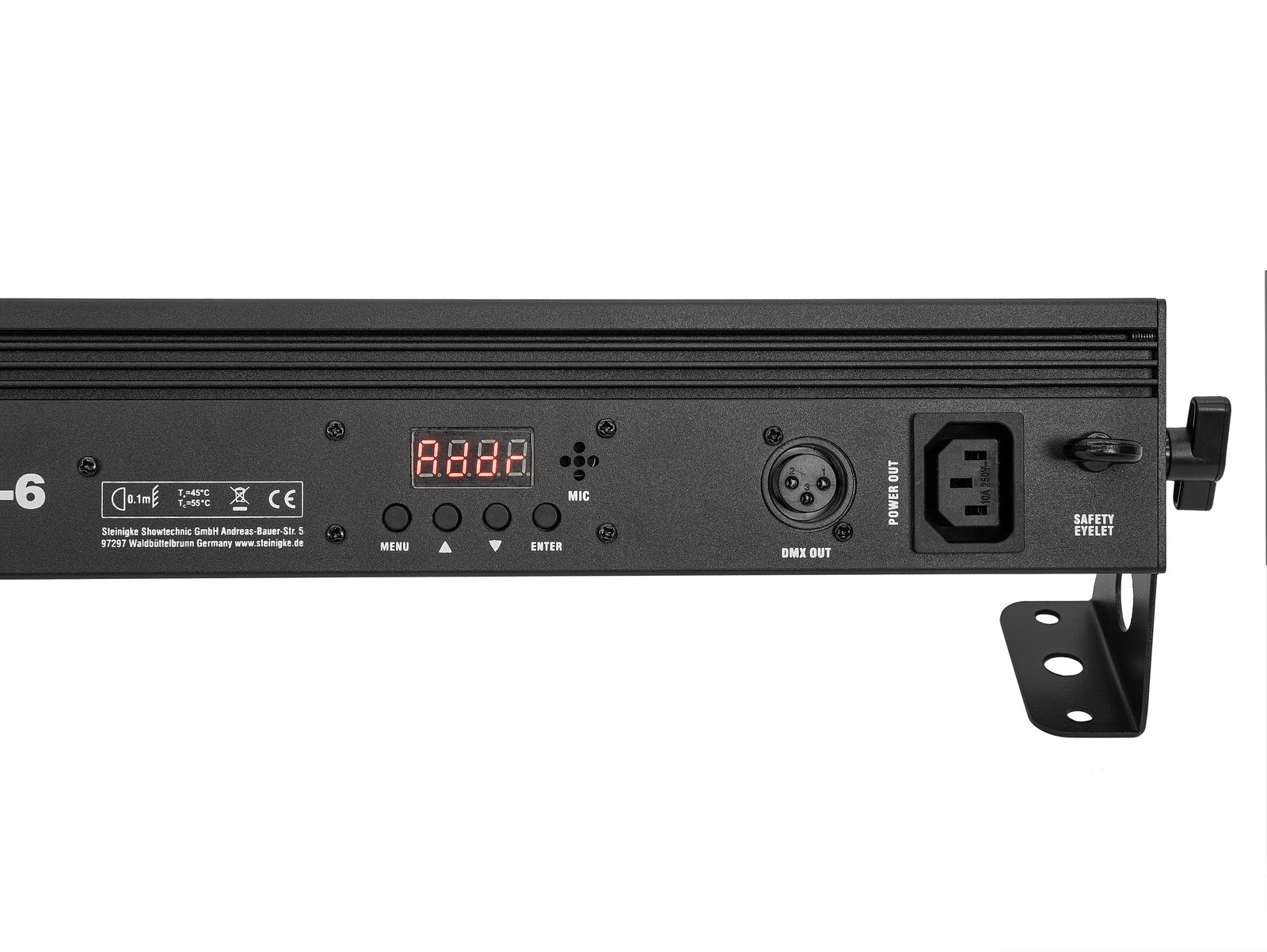

Product information "EUROLITE LED BAR-6 QCL RGB+WW Bar"
LED light effect bar (60 cm) with RGB+WW color mixing
- 6 powerful LEDs 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
- Variable color temperature 2700 K - 8000 K
- 3 integrated show programs
- Direct color selection for 20 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone, DMX, Sound to light via Microphone, Master/slave function, QuickDMX via USB (optional), W-DMX by wireless solution via USB (optional), CRMX by LumenRadio via USB (optional)
- Strobe effect
- With a beam angle of 20°
- 4 digit 7-segment LED display
- With Mounting bracket
- Flicker-free
- Color blend stepless, color change adjustable, color fade adjustable, Dimmer electronic
- Mains input and output for power linking up to 8 units
Package contents
- 1 x bar, 1 x user manual, 1 x power cord, 2 x mounting bracket, 2 x washer, 2 x knurled screw
Related links to "EUROLITE LED BAR-6 QCL RGB+WW Bar"
Specifications "EUROLITE LED BAR-6 QCL RGB+WW Bar"
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 14 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Fuse: | T 1 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 6 x 7 W high-power 4in1 QCL RGB/WW (homogenous color mix) |
| Color temperature: | 2700K - 8000K adjustable |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 2; 4; 5; 6; 9 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain |
| Projection: | Flicker-free |
| Beam angle: | 20° |
| Beam angle (1/2 peak): | 20° |
| Beam angle (1/10 peak): | 33° |
| Housing color: | Black |
| Attachment system: | Mounting bracket |
| Display type: | 4 digit 7-segment LED display |
| Dimensions: | Length: 56,6 cm Depth: 8,85 cm Height: 10,9 cm |
| Weight: | 1,65 kg |
| Noise classification: | Class 0 (no noise at all) |
| Power cord | |
| Cable length: | Approx. 1,1 m |
| Mounting bracket | |
| Diameter mounting holes: | 1 x Ø20mm; 1 x Ø11mm; 1 x Ø8mm; 2 x Ø7mm |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
