Rotary mixer with 3-band frequency isolator, VCR filter and FX loop Filter section with... more

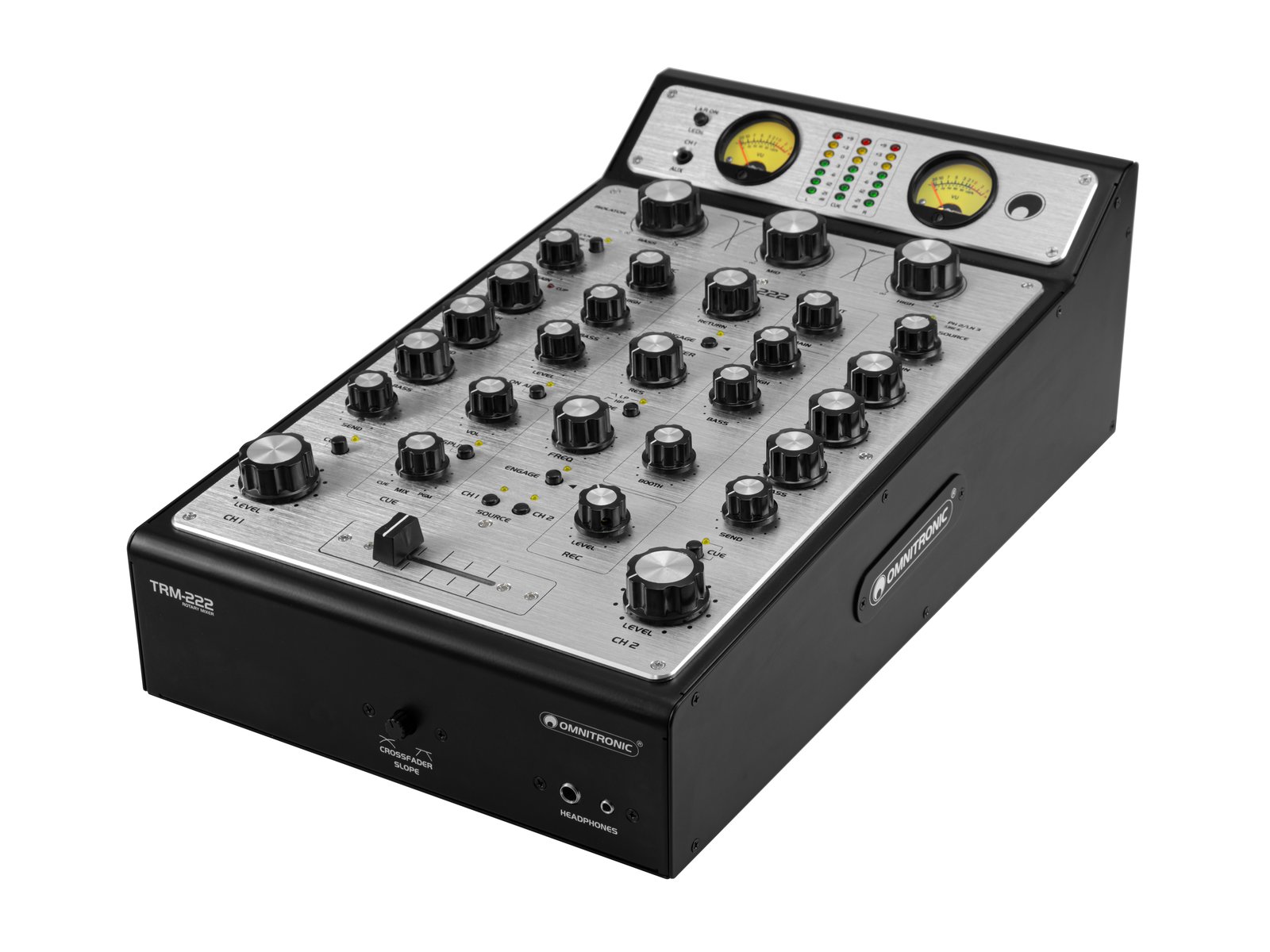

Product information "OMNITRONIC TRM-222 2-Channel Rotary Mixer"
Rotary mixer with 3-band frequency isolator, VCR filter and FX loop
- Filter section with resonance and sweep control for creative sound shaping
- 3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
- Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
- 2 stereo input channels with gain control, clip LED, 3-way equalizer, FX Send and phono/line switching
- 2 microphone input channels with gain control, 2-way equalizer on air switch
- 2 effects send/return paths
- Dual analog VU meter
- Direct outputs for Timecode applications
- High-grade components ensure long life and excellent sound quality
- Booth output with separate 2-way equalizer and level control
- Record output, independent of the master
- Fully assignable VCA crossfader with adjustable curve
- Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
- Desktop console housing
Related links to "OMNITRONIC TRM-222 2-Channel Rotary Mixer"
Specifications "OMNITRONIC TRM-222 2-Channel Rotary Mixer"
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Cable length: | 1,5 m detachable |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0,05 % at 1 kHz |
| Gain: | Line -12 dB to +12 dB Phono -40 dB to +5 dB FX 20 dB Microphone 55 dB |
| DJ filter: | Routable: LPF, HPF, |
| Isolators: | Master Gain:- ∞ bis +9 Low/mid 300 Hz, 18db/oct , Butterworth Mid/high 4000 Hz, 18db/oct , Butterworth |
| Housing color: | Black; silver |
| Control elements: | Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, tone control |
| Status LED: | Power, master level meter, clip, CUE |
| Connections: | Input: line via 2 x stereo RCA Input: line/phono via 2 x stereo RCA Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: AUX returns via 2 x 6.3-mm-jack (bal.) Output: Timecode via 2 x stereo RCA Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version Output: headphones via 1 x 3.5 mm jack (stereo) mounting version Output: rec. via 1 x stereo RCA Output: booth via 2 x 3-pin XLR Output: booth via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: master via 1 x stereo RCA Output: AUX sends via 2 x 6.3-mm-jack (bal.) |
| Channels: | Input chanel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch Microphon chanal: 1 x mono via Combination socket (XLR/jack), channel control via Rotary, 2-band tone control EQ, ON AIR switch Master output: 1 x stereo via XLR or RCA, channel control via Rotary Booth output: 1 x stereo via XLR or RCA, channel control via Rotary, 2-band tone control EQ Rec. output: 1 x stereo via RCA, channel control via Rotary Headphones output: stereo via Jack, channel control via Rotary |
| Max. level: | Output: +21 dBu |
| Material: | Metal; aluminum |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 45 cm Depth: 26 cm Height: 16 cm |
| Weight: | 5,80 kg |
