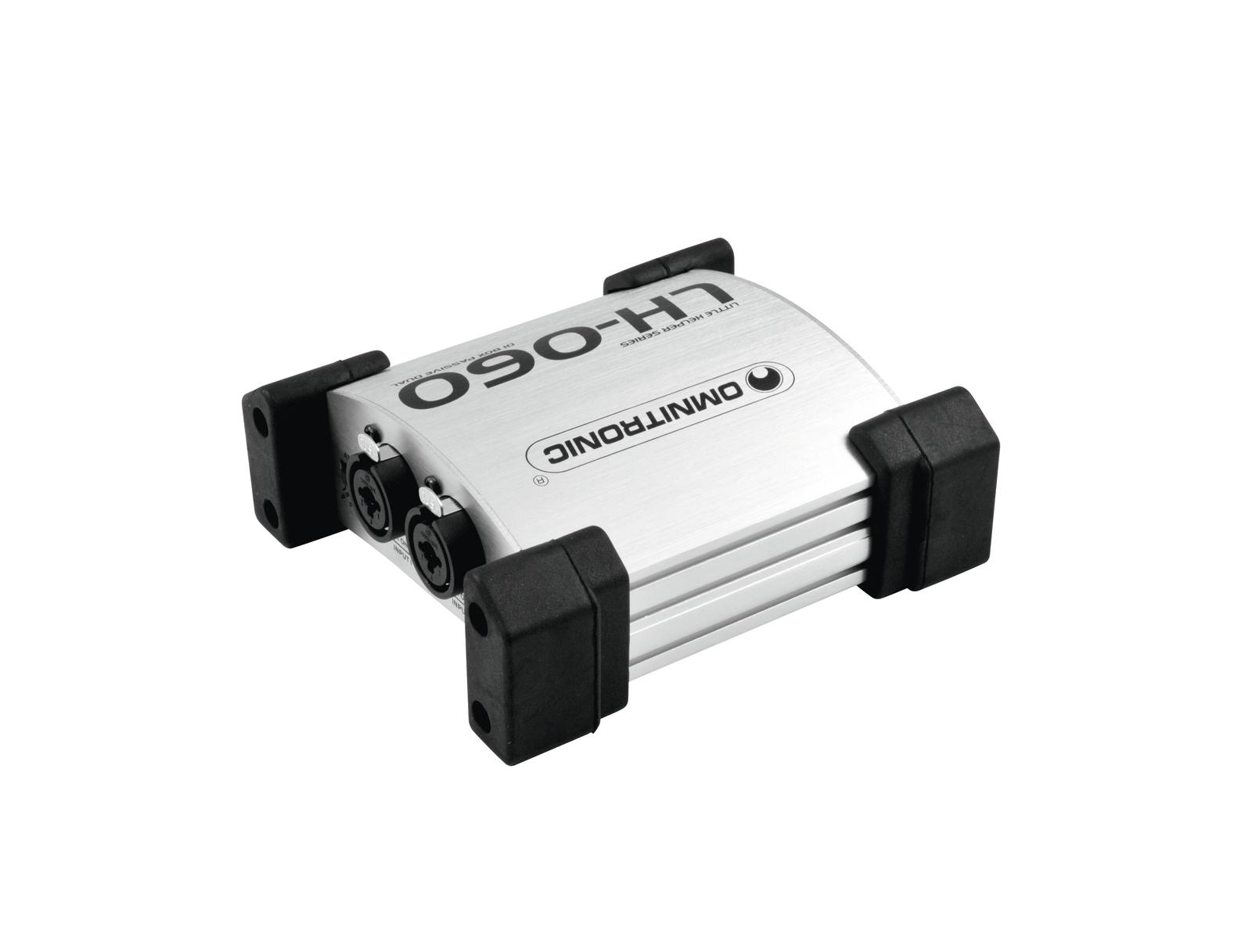

OMNITRONIC LH-060 PRO Passive Dual DI Box

74.90€ *

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays (**)

Save your email address and stay informed about this article.

as soon as the item is back in stock
as soon as the price goes down
as soon as the article is available as a special offer
  • ST-10355060
  • 4026397194890
  • Standard
Passive 2-channel DI box/splitter, silver Passive 2-channel DI box with split mode 2... more
Product information "OMNITRONIC LH-060 PRO Passive Dual DI Box"


Passive 2-channel DI box/splitter, silver

  • Passive 2-channel DI box with split mode
  • 2 high-impedance signal inputs via combo connectors (XLR/6.3 mm jack)
  • 2 low-impedance XLR outputs
  • Converts 2 separate unbalanced line inputs (e.g. instruments) into 2 balanced XLR outputs, for connecting a mixer
  • Switchable to split mode (input 2 routes the signal to both outputs)
  • Switchable input attenuation: 0 dB, -20 dB, -40 dB
  • Ground-lift switch eliminates signal interference and ground loop problems
  • Modern convex housing design with rubber corners for safe positioning
  • Stackable
  • Cables can be routed under the housing


Related links to "OMNITRONIC LH-060 PRO Passive Dual DI Box"
Specifications "OMNITRONIC LH-060 PRO Passive Dual DI Box"
Frequency range:15 - 30000 Hz
Impedance:Input: 50 kOhm
Output: 600 Ohm
Input attenuation:0 dB, -20 dB, -40 dB; switchable
Control elements:Groundlift selector
Connections:Input: 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 2 x 3-pin XLR
Max. level:Output: +6 dBu
Dimensions:Width: 15 cm
Depth: 13 cm
Height: 6 cm
Weight:650 g
Details on product safety "OMNITRONIC LH-060 PRO Passive Dual DI Box"

Information Required by the General Product Safety Regulation (GPSR)

Manufacturer:

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
Waldbüttelbrunn, 97297
Germany
Phone: +49 931 4061 600
Email: info@steinigke.de


Responsible Entity in the EU:

Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
Waldbüttelbrunn, 97297
Germany
Phone: +49 931 4061 600
Email: info@steinigke.de
